80W/K Heat Exchanger 返回上一页
Model:HE06-80SEH/01
800W Mixed Liquid Air Heat Exchanger/ Air To Air Tube Heat Exchanger For Cooling



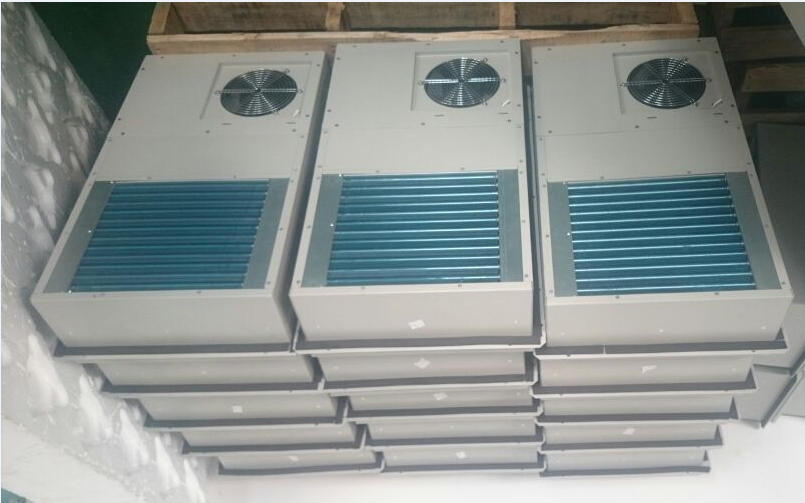

800W Mixed Liquid Heat Exchanger

1. Description


The HE06−80SEH/01 Mixed Liquid Heat Exchanger is a full automation temperature control product. It uses intelligent controller to control the whole system of the heat exchanger. According to the variation of environment temperature, the intelligent controller can automatically detect, operate and record the whole system’s operating time, power consumption, event and historical data. It can store 100 event records and 1280 historical data records, and can enquire 256 days’ daily record information. The product is widely applied in telecom cabinet, small and medium sized telecom room, UPS room, outdoor base station room, etc. The heat exchanger includes the following specs: 800W,1000W,1300W, 1500W, 1900W. In addition, it also can be custom made.


 2. Features

(1) Strong adaptability

(2) High intelligence

(3) High precision

(4) High reliability

(5) The heat exchange capacity can be custom made

(6) Low noise

(7) Low energy consumption

(8) With 4 way switching value detection

(9) With 1 way room air conditioner control

(10) Input voltage range: DC36 - 65V

(11) With dry contact alarm output

(12) Dust proof and water proof

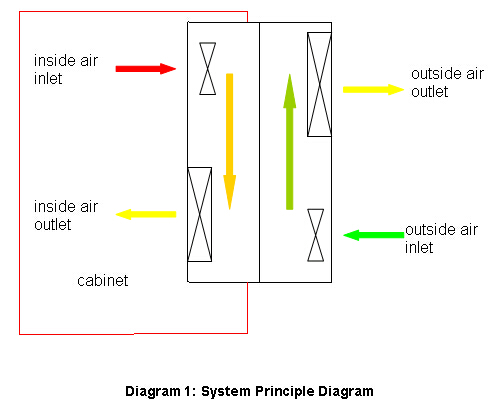

3. System Principle Diagram

4. Standard Compliance

Standard

Description

GB/T 17626.7-1998

Electromagnetic compatibility

GB4706.1

Safety of household appliance and electrical appliance with similar use.

GB4798.1

Environmental conditions existing in the application for electric and electronic products - storage

GB4798.2

Environmental conditions existing in the application for electric and electronic products - transportation

GB4798.3

Environmental conditions existing in the application for electric and electronic products - usage






















5. Technical Parameters

Model No.

HE06-80SEH/01

Environmental Performance

working environmental temperature

-20°C ~ 50°C

storage working temperature

-50°C ~ 70°C

working humidity

≤95%

Thermal Performance

heat exchange capacity

800W

heating input power

optional



Electrical Performance

rated input current

2.1A

rated input power

112W

input voltage

DC48V

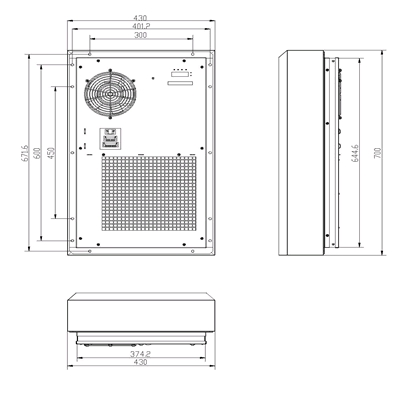

 Diagram 2:  Dimension of 800W Heat Exchanger


6. Electrical Wiring Diagram

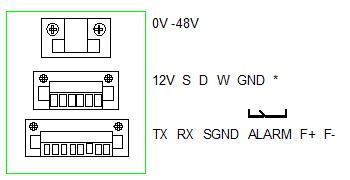

Diagram 3: Wiring Diagram


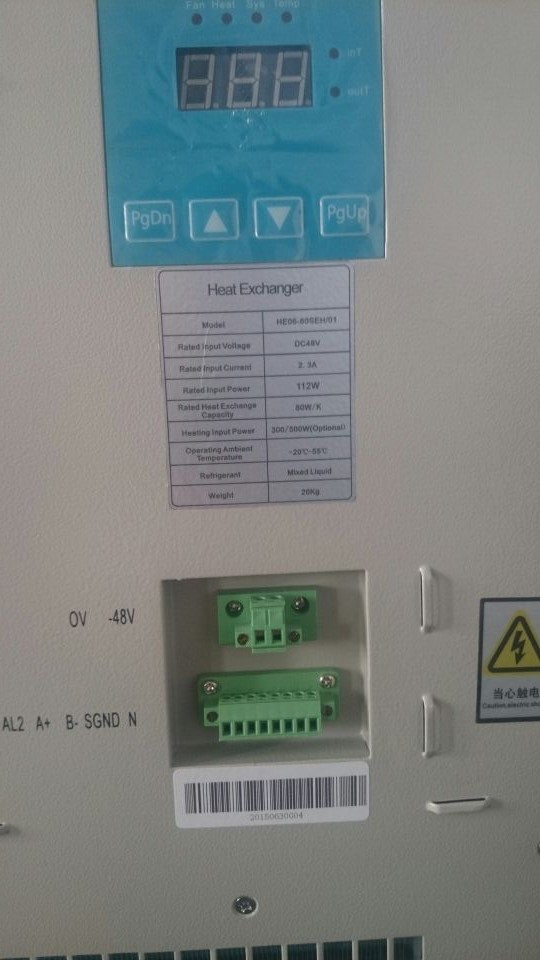

Wiring Ports:


0V -48V: power supply input (voltage input: DC36 - 65V)

12V GND: heat exchanger voltage output

S: smoke sensor detection input

D: door alarm detection input

W: water sensor detection input

* : not connected pin

TX RX SGND: RS - 232 communication interface

ALARM: general alarm output

F+  F- : auxiliary straight ventilation control output (output voltage: DC48V)

7. System Control

Technical Parameter

a. Display measured temperature and set temperature;
b. Temperature measurement accuracy: 0.1 °C; display accuracy:0.1 °C;
c. Intelligently select cooling or heating mode;
d. Direct ventilation function with protective mode;
e. Power supply: DC48V;
f. Power consumption:≤5W;
g. Working environment: -30°C~70°C; <90%RH;
h. Installation method: guide rail,hanging;
i. Dimension:150mm×190mm×45mm


8. Wiring Diagram

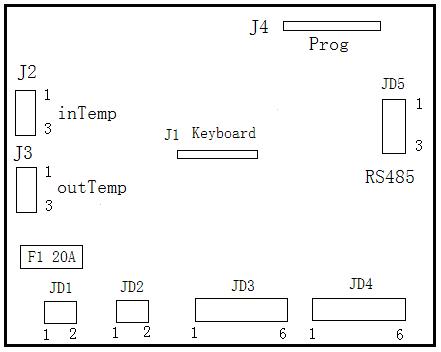

  Diagram 4: CPU Board Ports Diagram

J1: button;

J2: inner temperature sensor input: 1—5V, 2—inT, 3—GND;

J3: outer temperature sensor input: 1—5V, 2—outT, 3—GND;

J4: Prog programming port;

JD1: DC48V input, 1—48V+, 2—48V-;

JD2: heater power supply: 1—0V (-), 2—48V (+);

JD3: 1, 2 - straight ventilation output, 1—48V (+), 2—0V (-);

     3, 4 - system alarm output (dry contact output, disconnecting alarm);

     5, 6 - temperature alarm output (dry contact output, disconnecting alarm);

JD4: fans control port:

fans and water pump power supply ( water pump uses 2 wire +-):           1 — 48V+, 6 — 0V-;

inner fans control: 2 — Y1 (control output), 3 — W1 (feedback input);

outer fans control: 4 — Y2 (control output), 5 — W2 (feedback input);

JD5: RS485 communication port: 1 — B-, 2 — A+, 3 — SGND.
