IP55 Weatherproof 19" Rack Double Walls Outdoor Telecom Cabinet(Air Conditioner Type)
ET9090122 Outdoor Telecom Cabinet
Description
The cabinet is one compartment cabinet. The cabinet cooling use air conditioner and fans, to ensure the equipments operate normally at stable temperature range, so as to make the service life of the equipments much longer and their performance more stable.
Technical Parameters
|
Item |
Type |
Technical Parameter |
|
Structure |
Dimension |
External Dimension H*W*D 1225*900*900mm
Internal Dimension H*W*D 900*800*800mm |
|
Layout |
One compartment |
|
|
Equipment Installation Method |
19” standard rack |
|
|
Door |
With one front door and one back door, totally two doors; with special lock for outdoor cabinet (support padlock) |
|
|
Material |
Galvanized steel; double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with heat insulation between two walls. |
|
|
Structure |
Assembled |
|
|
Ingress Protection |
IP55 |
|
|
Temperature Control |
Cooling |
500W Air Conditioner and fans |
|
Lighting |
LED lamp |
48V LED lamp |
|
Temperature |
Temperature |
Working Temperature: -40°C ~ +55°C |
|
Storage Temperature: -50°C ~ + 70°C |
||
|
Transport Temperature: -50°C ~ +70°C |
||
|
Humidity |
Relative Humidity |
5% ~ 100% |
|
Pressure |
Air Pressure |
62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
|
Radiation Intensity |
Solar Radiation Intensity |
1124 × (1±5%)W/m2 |
Accessories List
No.
Item
Quantity
Unit
Specs
1
Outdoor Telecom Cabinet
1
Set
(1) External Dimension
H*W*D 1225*900*900mm ;
Internal Dimension
H*W*D 900*800*800mm
(2) One compartment;
(3) With one front door and one back door, totally two doors; with special lock for outdoor cabinet (support padlock)
(4) Material: galvanized steel; double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.
2
Air Conditioner
1
Set
500W Air Conditioner, AC220V power supply
3
110V To 220V Transformer
1
Set
Used for air conditioner input
4
Fans
4
PC
12038, DC48V
5
Power Distribution Unit
1
Set
Grade B Lightning Proof
AC Input: 63A/2P *1;
AC Output: 16A/1P*4;
DC Output: 16A/1P*4.
Height: 4U
6
Embedded Telecom Power System (UPS)
1
Set
DC48V, 60A, 3210W; Model:
1U-4860, Height: 1U.
7
Package
1
Set
Wooden Case

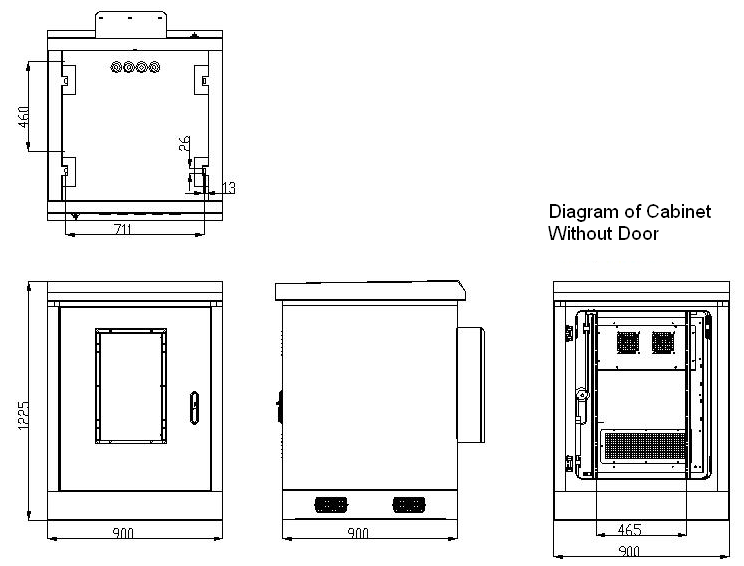

Cabinet Layout Diagram:
